This article shows you how to view the alert status for an Azure Arc site. The alert status for a site reflects the status of the underlying resources. From the site status view, you can also find detailed status information for the supported resources.
Prerequisites
- An Azure subscription. If you don't have a service subscription, create a free trial account in Azure.
- Azure portal access.
- Internet connectivity.
- A resource group or subscription or service group in Azure with at least one resource for a site. For more information, see Supported resource types.
- A site created for the associated resource group or subscription or service group. If you don't have one, see Create and manage sites.
Alert status colors and meanings
In the Azure portal, the color indicates the status:
- Green: Means Up to date.
- Blue: Means Info.
- Purple: Means Verbose.
- Yellow: Means Warning.
- Orange: Means Error.
- Red: Means Critical.
View alert status
View alert status for an Azure Arc site from the main page of the Azure Arc site manager (preview).
In the Azure portal, go to Azure Arc and select Site manager (preview) to open the site manager.

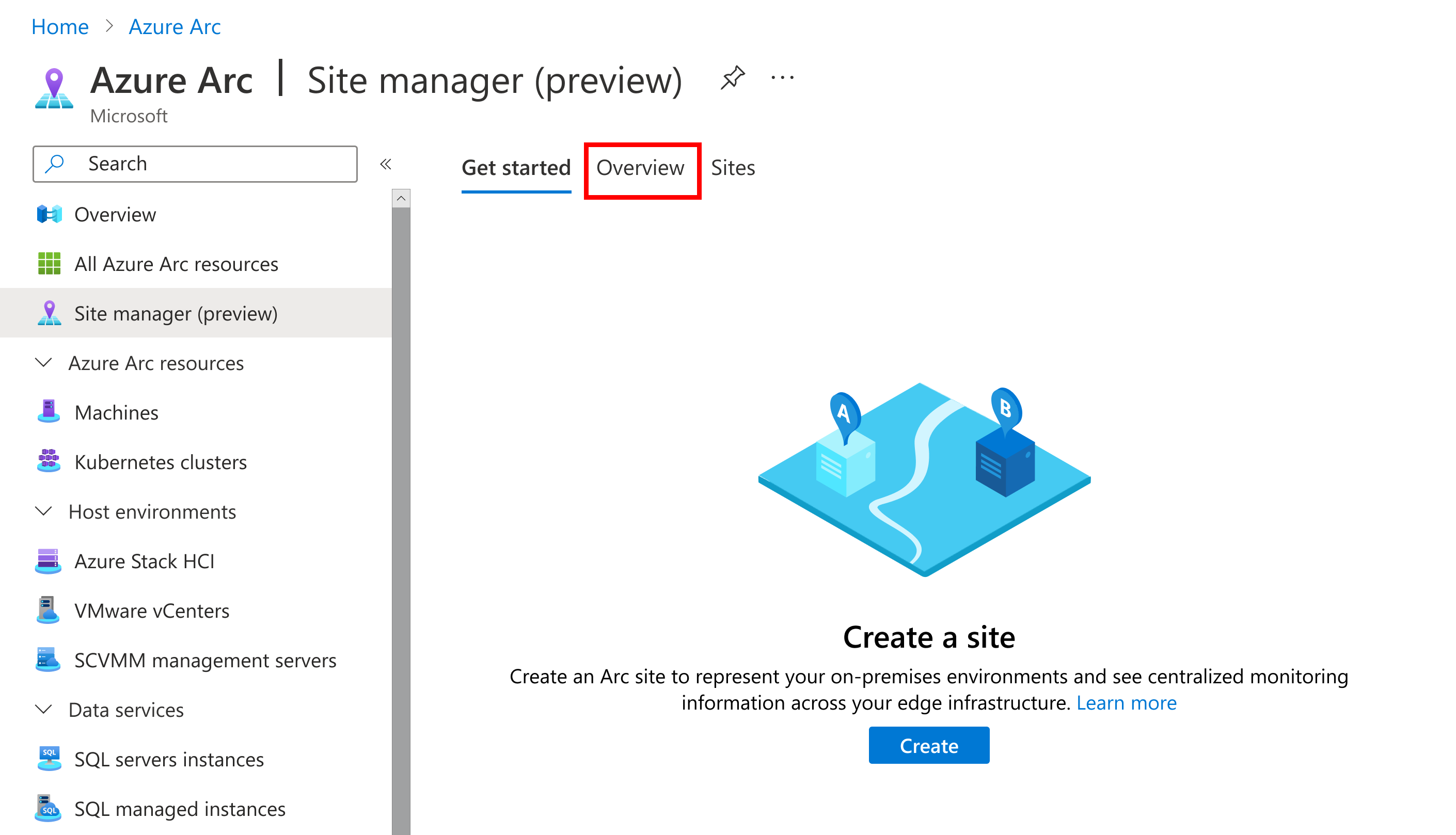

From the Azure Arc site manager, go to the Overview page.
On the Overview page, you can view the summarized alert statuses of all sites. This site-level alert status is an aggregation of all the alert statuses of the resources in that site. In the following example, sites are shown with different statuses.
To understand which site has which status, select either the Sites tab or the blue status text.

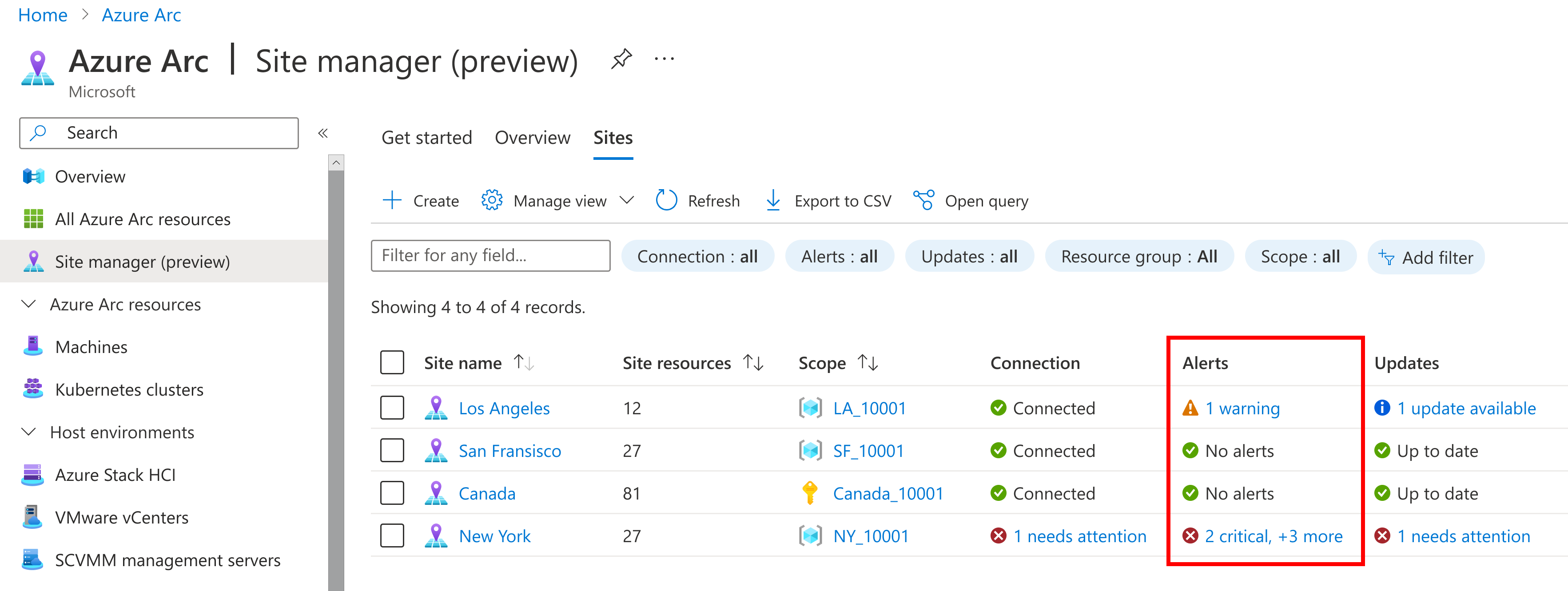

The Sites page shows the top-level status for each site, which reflects the most significant status for the site.
If there's an alert, select the status text to open details for a specific site. You can also select the name of the site to open its details.

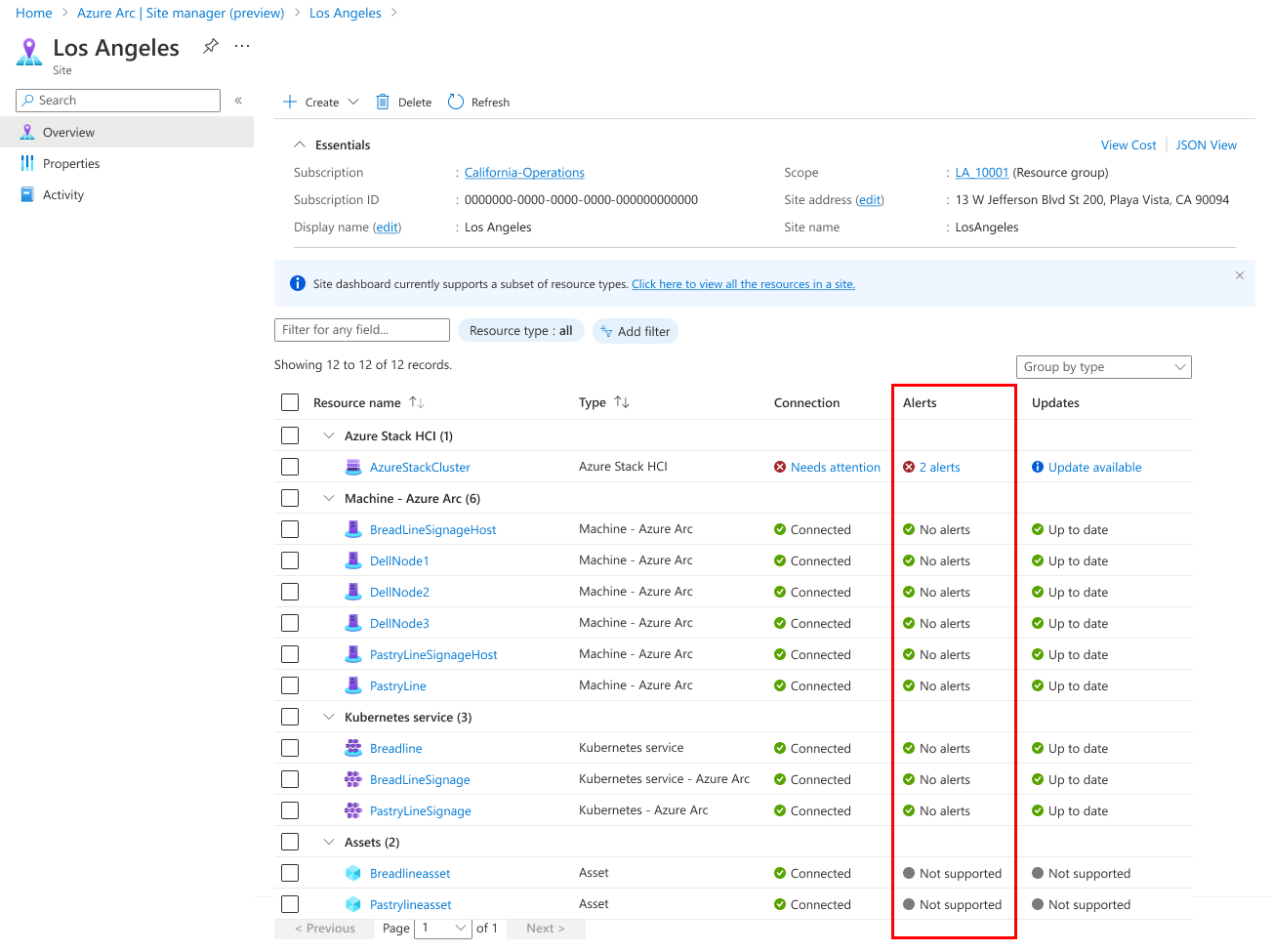

On the resource page for the site, you can view the alert status for each resource within the site. You can see the resource responsible for the most significant status of the top level.
